· 滑阀经过热处理硬化并经过精密加工，保证更低的內泄漏及更长的使用寿命。外部零件外表面都是经过镀锌镍处理和防腐蚀处理。所有零部件均采用高强度钢材制造。结构紧凑、体积小。

· 额定电磁线圈适合连续工作。

· 可选线圈电压、插头。

· 可以对所有油口完全加压。

· 插件电压可互换。

· 可选IP69K 防水E 型线圈。

· 工业通用阀孔。

· Poppet is hardened and ground to guarantee minimal wear and to extend service life.All external surfaces are zinc plated and corrosion-proof. All valve parts are made of highstrength steel. Compact size.

· Continuous-duty rated coil.

· Optional coil voltages and terminations.

· All ports may be fully pressurized.

· Unitized, molded coil design.

· Optional waterproof E-Coils

· Industry-common cavity.

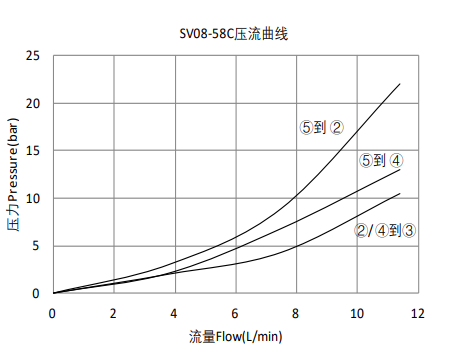

注：性能图说明了流量处理能力。P/Q 曲线是在 Toil=40° C 和 46 cSt 下记录。

Note: The performance chart illustrates flow handling capacity. P/Q curves are recorded at Toil=40° C and 46 cSt.
