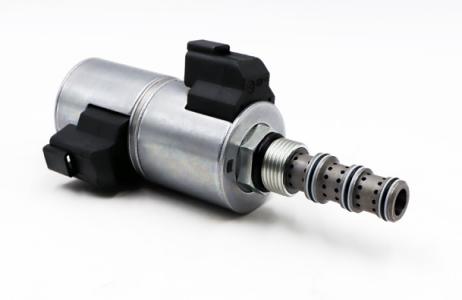

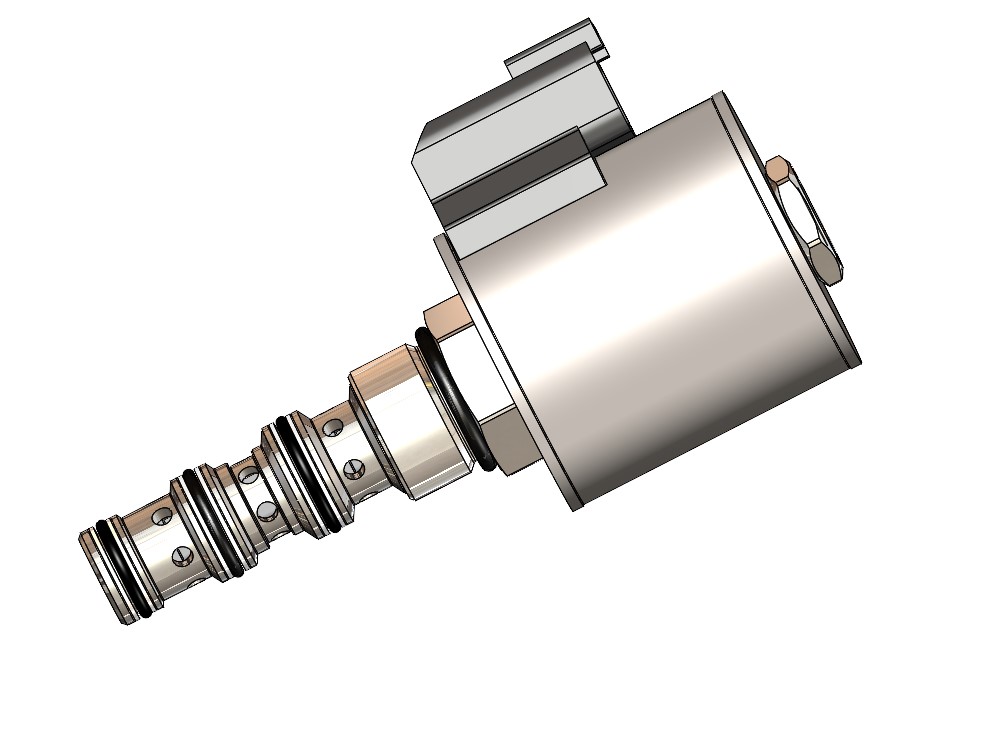

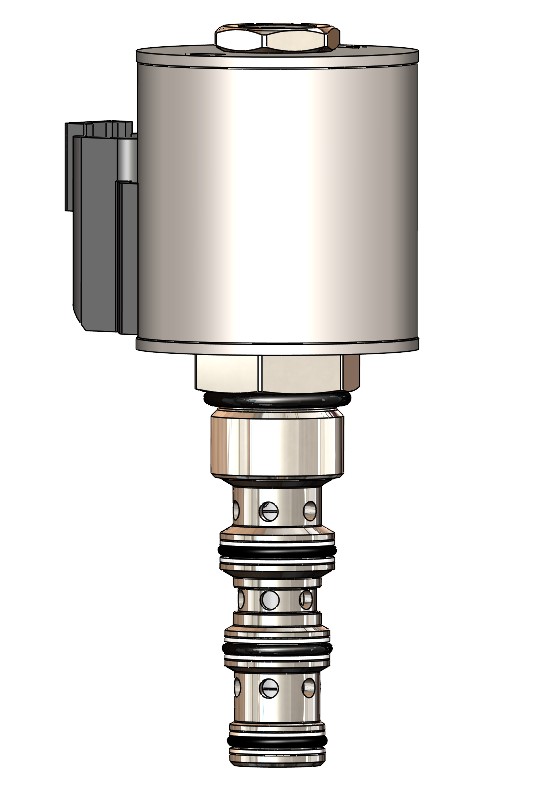

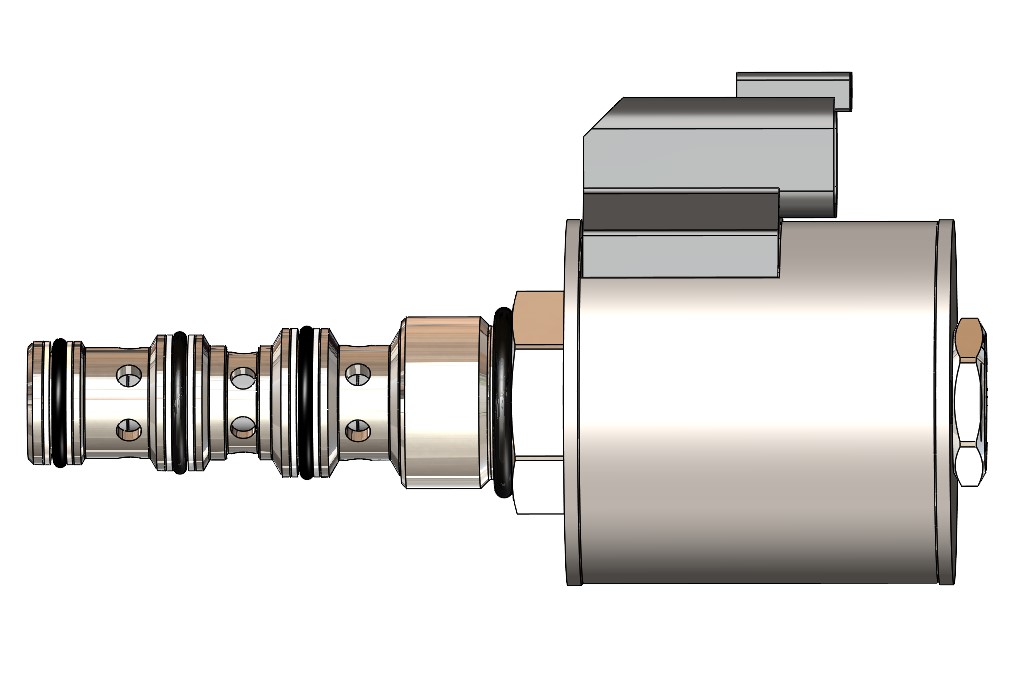

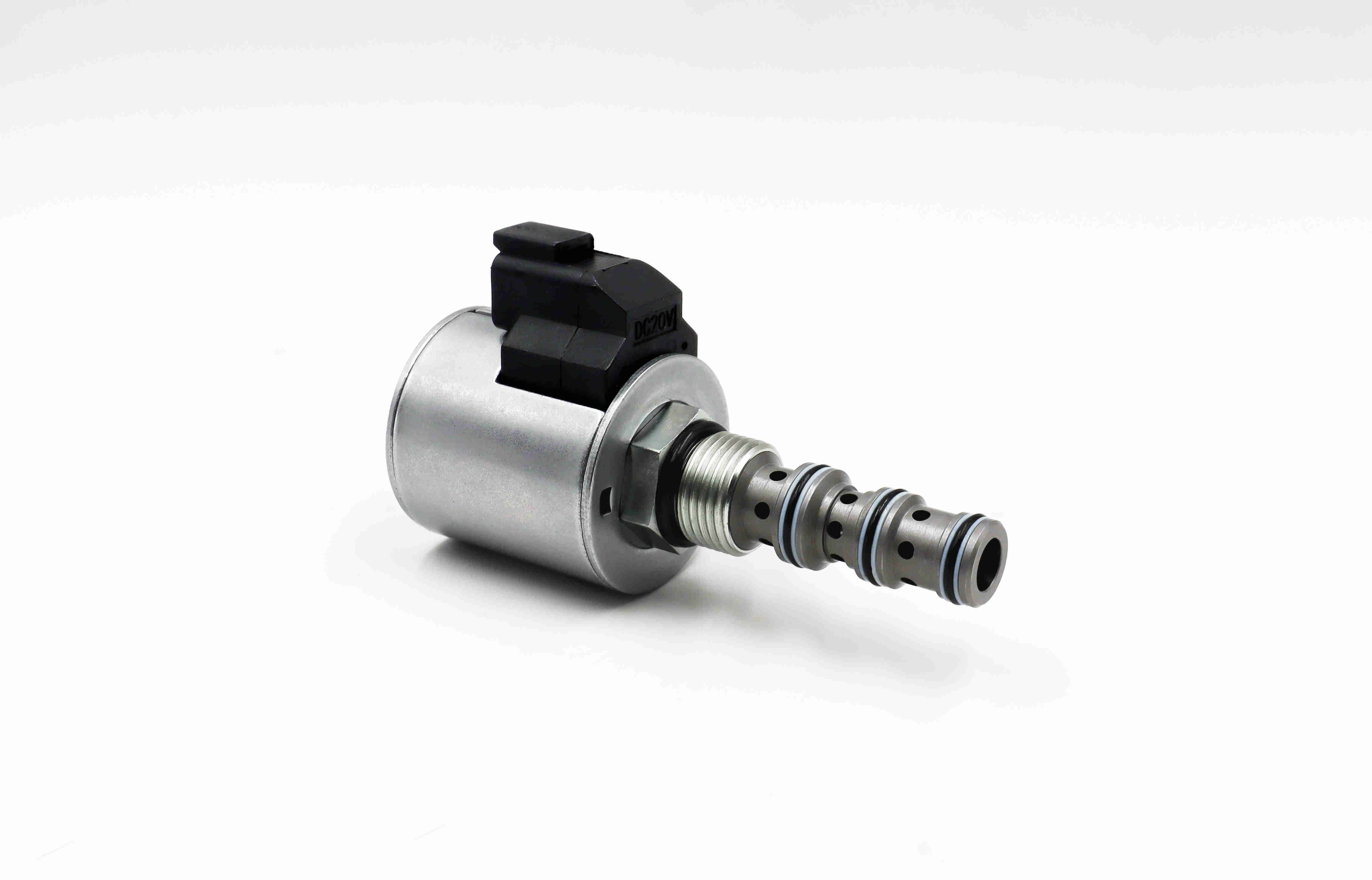

SV10-4X Series

Solenoid directional Valves

SV10-4X Series

23L/min

276bar

SV10-4X: 二位四通电磁换向滑阀
4-Way,2-Position Solenoid-Operated Directional Spool Valve
直动滑阀式螺纹插装电磁换向阀.
A Cartridge-style Direct-acting Spool-type Solenoid Directional Valve

Download Contact Us

Product Advantages

· 滑阀经过热处理硬化并经过精密加工,保证更低的內泄漏及更长的使用寿命。外部零件外表面都是经过镀锌镍处理和防腐蚀处理。所有零部件均采用高强度钢材制造。结构紧凑、体积小。

· 额定电磁线圈适合连续工作。

· 可选线圈电压、插头。

· 可以对所有油口完全加压。

· 插件电压可互换。

· 可选IP69K 防水E 型线圈。

· 工业通用阀孔。

· Poppet is hardened and ground to guarantee minimal wear and to extend service life.All external surfaces are zinc plated and corrosion-proof. All valve parts are made of highstrength steel. Compact size.

· Continuous-duty rated coil.

· Optional coil voltages and terminations.

· All ports may be fully pressurized.

· Unitized, molded coil design.

· Optional waterproof E-Coils

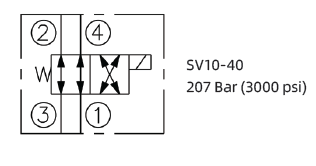

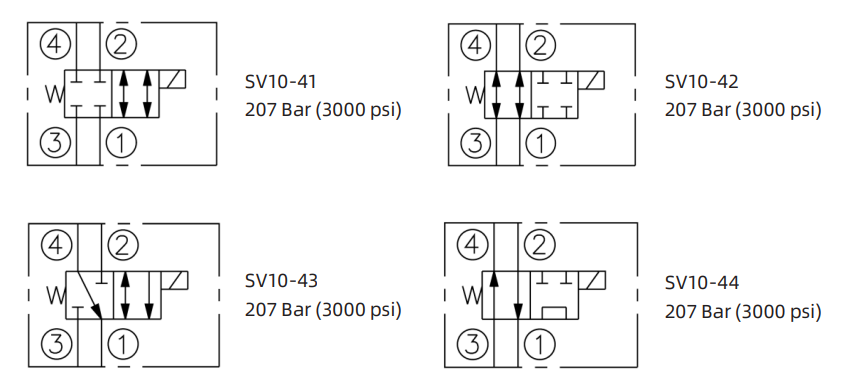

Schematics


Detailed parameters

 工作压力Pressure rating

 207bar

 最大工作压力 Maximum operating pressure

 276 bar

 最大流量 Maximum flow

 23L/min

 最大内泄漏量 Maximum internal leakage

 82 cc /min @207bar工作压力
82 cc /min @ 207bar pressure rating

 线圈额定负载Coil rated load

 可在85%~115%的额定电压范围内连续工作Work continuously in the rated voltage range of85%-115%

 最小吸合电压Minimum operate voltage

 207bar时为额定值的85%85% of rated value at 207bar

 20°C时的线圈初始电流Coil initial current at 20°C

 E型线圈:12VDC时为1.7A;24VDC时为0.85AE-coil: 1.7A at 12VDC; 0.85A at 24VDC

 外露零件表面处理要求External component treatment

 Zn/Fe - standard Zn/Ni

 安装方向 Orientation

 无限制 No restrictions

 重量 Weight

 0.18kg

 适用油温范围 Oil Temperature Range

 -40°C to 100°C

 适用工作介质 Fluids

 矿物油或具有润滑性的合成油液 Mineral - based orsynthetics with lubricating properties

 工作介质粘度范围Viscosities

 7,4 to 420 cSt

 测试液压油型号 Oil testing condition

 ISO VG 46 cSt

 过滤要求 Filtration

 20/18/15 ISO 4406 (maximum filtration admitted)

 插孔 Cavity

 VC10-4

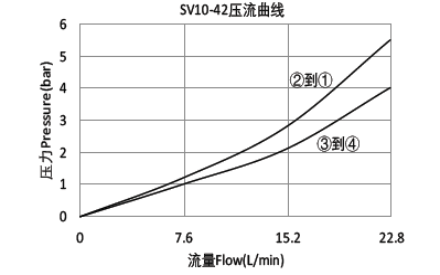

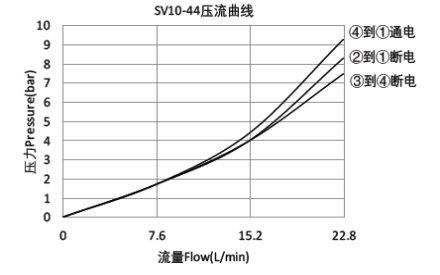

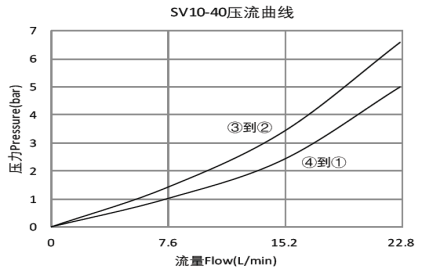

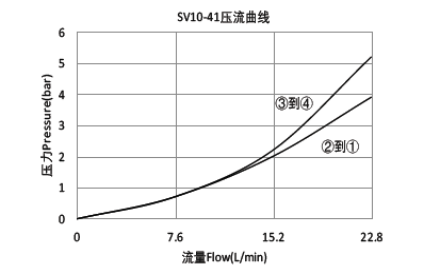

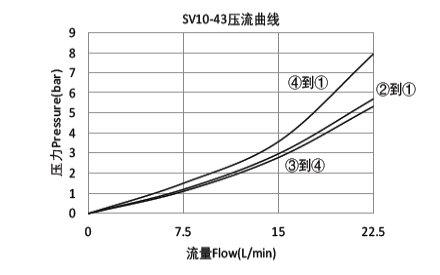

Characteristic Curve

  • 1(1).png
  • 2(1).png
  • 3(1).png
  • 4(1).png
  • 5(1).png

测试条件 Test condition

45℃时46cSt 的油液  46cSt oil at 45℃

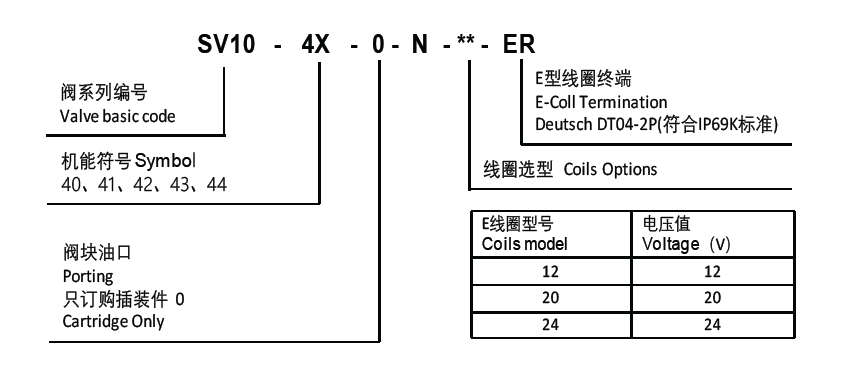

Ordering Code
